Pallet Forks & Frames

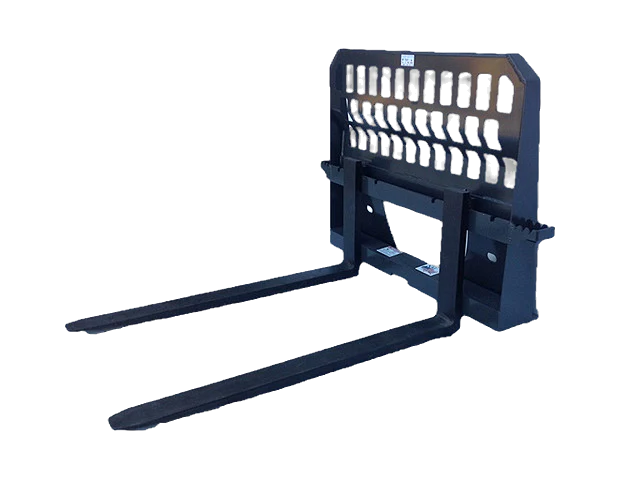

Heavy-duty, Walk-Through Pallet Fork carriage is constructed of 1/4” screen material with an industry leading 1 1/4” by 3” machined down top slider bar and a ½” lower slider bar. The slider rails are machined to move the forks easily with one hand. Our forks are made in the USA and have a 5500 lb capacity.

The walk-through carriage is designed to allow the skid steer door to swing over the top of the attachment, making it easy to get out of the cab with the forks attached, and have as much roll back as possible for today’s cab forward machines!



Features

• 4′, 5′, and 6′ wide Carriage

• 4′, 5′ and 6′ Long 5500 lb capacity USA MADE FORKS!

Construction Pallet Forks for a more durable frame and greater lifting capability.

• Durable powder coat finish

• Heat treated forks

• Replacement forks available

• Safety steps



Frame

• Carriage Bars (inches) .50  A-36 Steel

• Steps (inches)(2)  .6250  A-36 Steel

• Sides (inches).1875  A-36 Steel

• Grill (inches).1875  A-36 Steel

• Fork Width Ranges (inches) 12 - 42

• Frame Width (inches) 45.50

• Frame Width w/steps (inches) 55.50

• Frame Height (inches) 35

• Fork Length (inches) 48

• Fork & Frame Capacity (lbs.)4400



Also available: fork length 60" and lifting capacity 5500lbs
